ROTARY ENCODERS

VN413 – Electronic handwheel, various flanges

Incremental bidirectional encoder which allows to manually vary axis shifting typically on CNC operating machines.
Up to 3,600 pulses per revolution.
Absolute version available, with Parallel, SSI, CANopen, Profibus-DP interfaces, up to 17 Bit.
Cable output (in radial position) or terminal board.

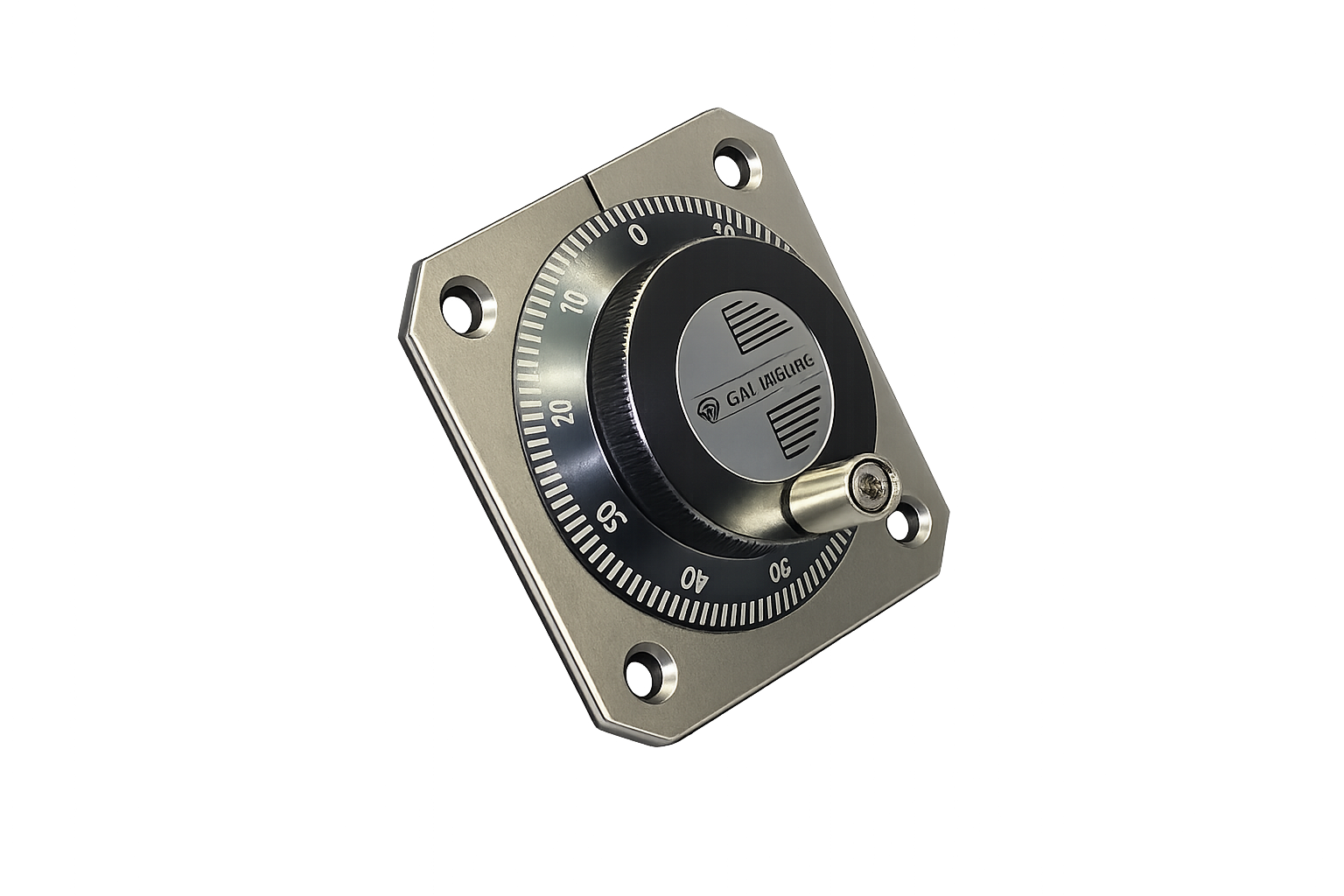

Available with round flange (VN413FT) or with square flange (VN413FQ).
Knob available in silver or dark grey color.

Resolution	50 ÷ 3,600 ppr incremental up to 17 Bit absolute
Fixing	no. 4 screws TPS M5
Cable output	radial
Connection	cable – terminal board
Power supply	from 5 V to 30 V based on the model
Protection class	IP 40
Incremental signals output	LINE DRIVER / PUSH-PULL
Max. frequency	50 kHz
Download Brochure

Resolution	50 ÷ 3,600 ppr incremental up to 17 Bit absolute
Fixing	no. 3 screws M4x10 at 120°
Cable output	radial
Connection	cable – terminal board
Power supply	from 5 V to 30 V based on the model
Protection class	IP 40
Incremental signals output	LINE DRIVER / PUSH-PULL
Max. frequency	50 kHz
