MAGNETIC SYSTEMS

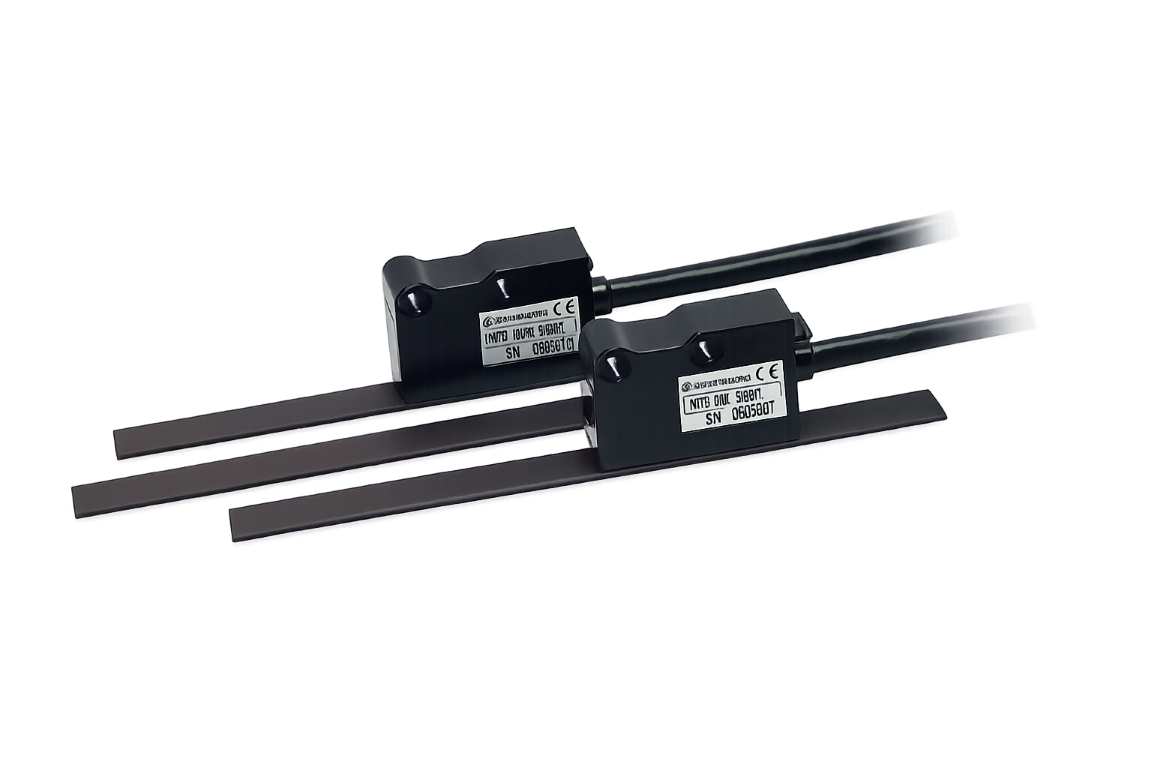

MTV – Reading system with sine-wave output (1 Vpp)

New line of magnetic sensors MTV, with small overall dimensions.
Resolutions up to 0.1 μm. DPI resolution and inches reading now available.
Many pole pitches available.
Wide alignment tolerances and sensor/magnetic band distance up to 5 mm, for an even easier and faster mounting.
Magnetic sensor body made of die-cast metallic material.
Fixing of magnetic sensor by existing threaded holes M4, or by M3 through screws.
Protected against inversion of power supply polarity and short circuits on output ports.

Pole pitch	2+2 mm
Available resolutions	up to 0.5 μm
Accuracy	± 8 µm
Sensor – magnetic band gap	0.1 ÷ 1 mm (with band MP200)
Reference indexes	C = at constant pitch (2 mm) E = external
Repeatability	± 1 increment
Output signals	sine wave 1 Vpp
Power supply	5 ÷ 28 Vdc ± 5%
Max. frequency	6 kHz
Max. traversing speed	12 m/s
Protection class	IP 67
Download Brochure

Pole pitch	5+5 mm
Available resolutions	up to 1 μm
Accuracy	± 30 µm
Sensor – magnetic band gap	0.3 ÷ 3 mm (with band MP500)
Reference indexes	C = at constant pitch (5 mm) E = external
Repeatability	± 1 increment
Output signals	sine wave 1 Vpp
Power supply	5 ÷ 28 Vdc ± 5%
Max. frequency	2.4 kHz
Max. traversing speed	12 m/s
Protection class	IP 67
