ROTARY ENCODERS

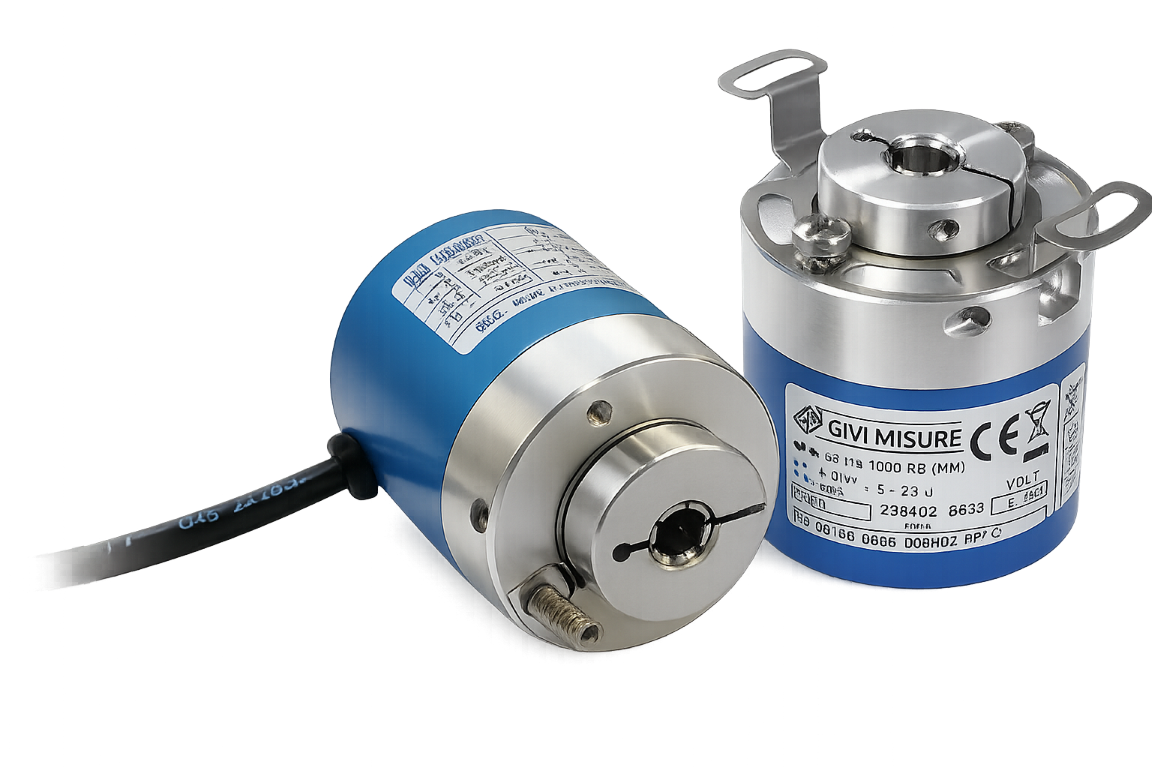

EN38 – Incremental encoder Ø 38 mm

Overview
Models

Overview

Compact-design incremental rotary encoder, based on optical principle.
Output by sealed cable in radial or axial position.
High degree of robustness. Aluminium flange and body.
High accuracy and stability of signals.
Protected against inversion of power supply polarity and short circuits on output ports.

Models

EN38 SC Semi-hollow shaft

EN38 ON Standard fixing

EN38 MN Double fixing system

EN38 FN Fixing by threaded nut

EN38 BB With square flange

Available pulses	5 ÷ 3,600 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Fixing	with elastic flange or anti-rotation pivot
shaft Ømm	5-6-8
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
Download Brochure

Available pulses	5 ÷ 3,600 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Centering Ø	33 mm
Fixing	no. 4 screws M3 at 90°
shaft Ø mm	6 – 8
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
Download Brochure

Available pulses	5 ÷ 3,600 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Centering Ø	20 mm
Fixing	no. 3 screws M3 at 120° no. 4 screws M3 at 90°
shaft Ø mm	6 – 8
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
Download Brochure

Available pulses	5 ÷ 3,600 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Fixing	by threaded nut M18x1
shaft Ø mm	6 – 8
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
Download Brochure

Available pulses	5 ÷ 3,600 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Centering Ø	20 mm
Fixing	no. 4 holes Ø 3.2 mm
shaft Ø mm	6 – 8
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
