ROTARY ENCODERS

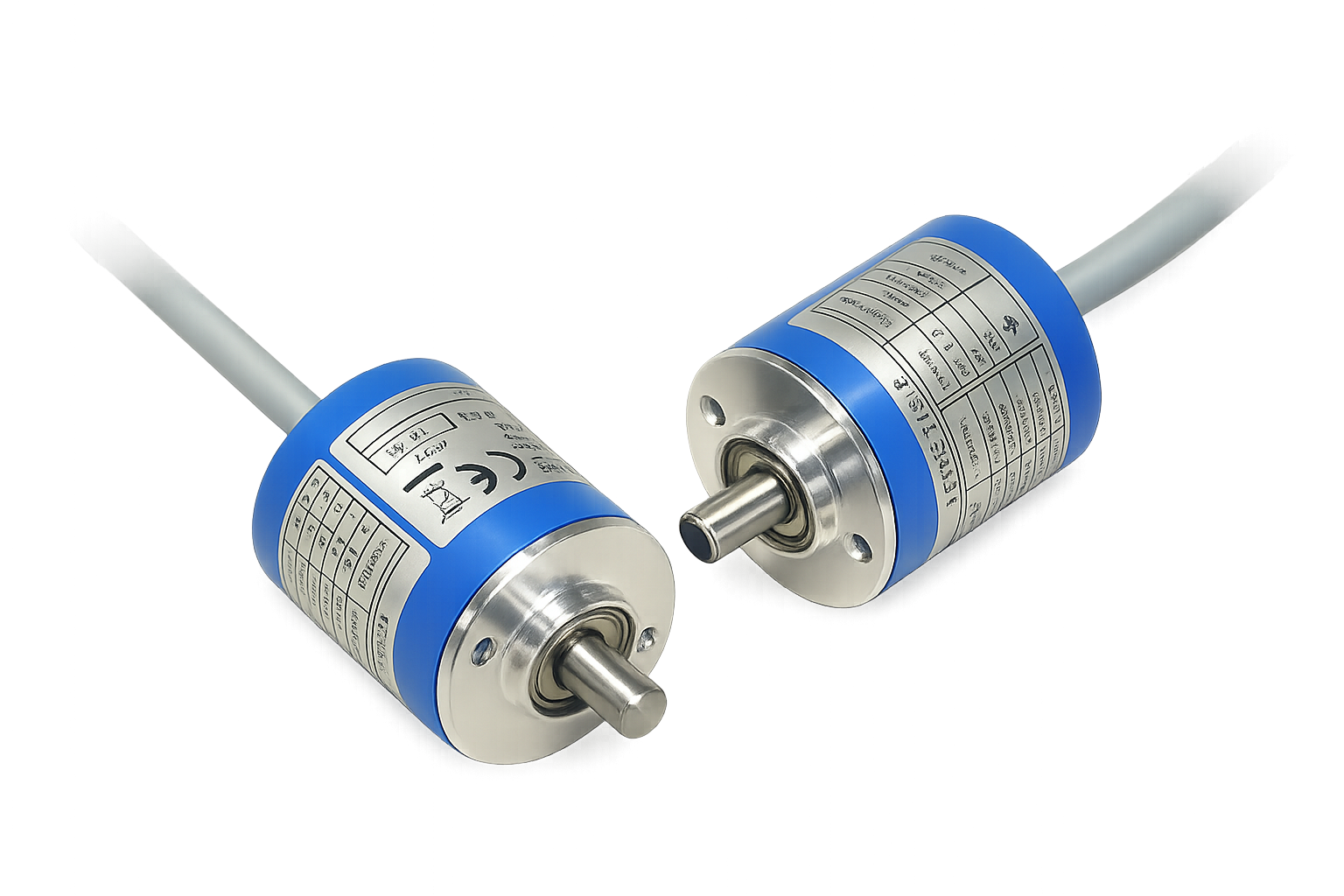

EN30 – Incremental encoder Ø 30 mm

Compact-design incremental rotary encoder, based on optical principle.
Output by sealed cable in radial or axial position.
High accuracy and stability of signals.
Protected against inversion of power supply polarity and short circuits on output ports.

Available pulses	2 ÷ 500 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Centering Ø	15 mm
Fixing	no. 2 screws M3 at 180°
Shaft Ø mm	4 – 5
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
Download Brochure

Available pulses	2 ÷ 500 ppr
Max. rotating speed	momentary 8,000 rpm continuous 6,000 rpm
Fixing	no. 2 screws M3 at 180°
Shaft Ø mm	4 – 6
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65
Output signals	LINE DRIVER / PUSH-PULL
Max. frequency	120 kHz
